Plugger Check Valve
Product name:SR Plunger Single Check Valves
Product introduction
SR plunger single check valve can open and close by itself,which can be installed in commercial refrigeration system, civil and industrial conditional equipments.
Features
- The valve ensures the correct flow direction only
- Prevents back-condensation from warm to cold evaporator
- Built-in damping piston that makes the valves suitable for installation in lines where pulsation can occur, e.g. In the discharge line form the compressor
- Oversize connections provide flexibility in use
Specification
- Refrigerant：CFC、HCFC、HFC
- Media temperature：-35 ~ +100℃
- Ambient temperature：-50~ +80℃
- Max. Working pressure：3.0MPa
- Max. Test pressure：4.2MPa

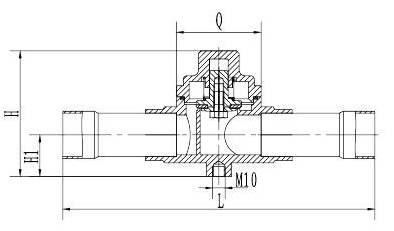

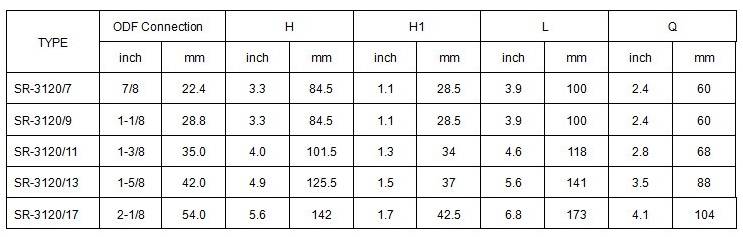

Dimension

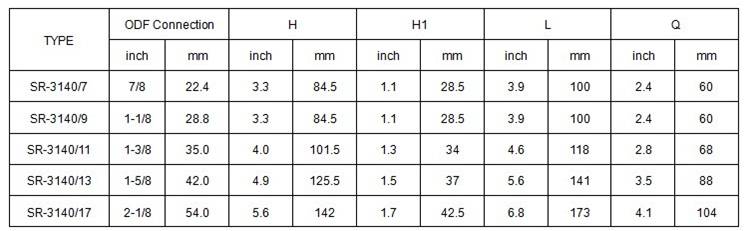

Valve With Extended Longer Tube for ODF Connection：
