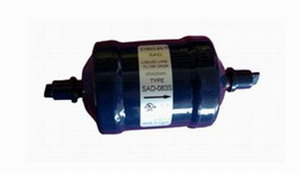

Solid Core Liquid Line Filter Drier,liquid line filter drier,steel filter drier,refrigeration filter - Qingdao Wisdom International Trading Co. Ltd

Adopting the molding design and taking use of the dryer with special mixture that provide excellent filtering effect, so as to prevent the refrigeration system from the pollution of noxious liquid and solid pollutants.

Feature:

1. High ability to remove pollutants such as moisture and acid

2. Suitable for refrigerants such as R12, R22, R134a, 404a, R502

3. Joint type: ODF or SAE

4. Very little pressure loss when full flowing

5. Corrosion resistant painting

6. Maximum working pressure: 4.70Mpa/680PSIG

Specification:

Type Connection（IN） Liquid flow capacity(TONS) A(IN) B(IN) C(IN)

ODF SAE R134a R12 R22/ R-410a R407c R404a/R-507 R502

WEK-032 　 1/4 1.61 2.09 2.21 2.12 1.45 1.45 4.38 　 1.63

WEK-032S 1/4 　 2.21 2.72 2.88 2.88 1.98 1.98 3.83 3.13

WEK-033 　 3/8 2.51 3.01 3.32 3.22 2.22 2.12 4.67 　

WEK-033S 3/8 　 2.51 3.01 3.32 3.22 2.22 2.12 4.06 3.18

WEK-052 　 1/4 1.72 2.12 2.32 2.22 1.52 1.52 4.81 　 2.5

WEK-052S 1/4 　 2.72 3.32 3.62 3.52 2.42 2.31 4.44 3.69

WEK-053 　 3/8 2.91 3.53 3.85 3.69 2.54 2.54 5.13 　

WEK-053S 3/8 　 3.62 4.41 4.78 4.68 3.23 3.13 4.5 3.36

WEK-082 　 1/4 1.89 2.31 2.28 2.45 1.69 1.58 5.63 　 2.5

WEK-082S 1/4 　 2.55 3.12 3.46 3.34 2.23 2.23 5.25 4.5

WEK083 　 3/8 3.33 4.01 4.35 4.36 2.94 2.84 5.94 　

WEK-083S 3/8 　 3.76 4.56 4.88 4.78 3.29 3.19 5.31 4.44

WEK-084 　 1/2 5.56 6.75 7.32 7.13 4.96 4.76 6.19 　

WEK-084S 1/2 　 5.88 7.12 7.74 7.55 5.12 5.07 5.38 4.38

WEK-162 　 1/4 1.98 2.36 2.57 2.44 1.72 1.63 4.39 　 2.5

WEK-162S 1/4 　 2.55 3.12 3.45 3.32 2.19 2.19 3.83 5.25

WEK-163 　 3/8 3.19 3.88 4.25 4.11 2.78 2.71 6.88 　

WEK-163S 3/8 　 3.61 4.41 4.79 4.77 3.16 3.13 6.25 5.38

WEK-164 　 1/2 5.88 7.14 7.81 7.77 5.23 5.12 7.06 　

WEK-164S 1/2 　 7.1 8.5 9.22 9.01 6.21 6.02 6.31 8.31

WEK-165 　 5/8 8.02 9.71 10.45 10.32 7.01 6.82 7.5 　

WEK-165S 5/8 　 8.32 10.12 10.94 10.77 7.32 7.12 6.56 5.31

WEK-167S 7/8 　

Type	Connection（IN）		Liquid flow capacity(TONS)						A(IN)	B(IN)	C(IN)
Type	ODF	SAE	R134a	R12	R22/ R-410a	R407c	R404a/R-507	R502	A(IN)	B(IN)	C(IN)
WEK-032		1/4	1.61	2.09	2.21	2.12	1.45	1.45	4.38		1.63
WEK-032S	1/4		2.21	2.72	2.88	2.88	1.98	1.98	3.83	3.13
WEK-033		3/8	2.51	3.01	3.32	3.22	2.22	2.12	4.67
WEK-033S	3/8		2.51	3.01	3.32	3.22	2.22	2.12	4.06	3.18
WEK-052		1/4	1.72	2.12	2.32	2.22	1.52	1.52	4.81		2.5
WEK-052S	1/4		2.72	3.32	3.62	3.52	2.42	2.31	4.44	3.69
WEK-053		3/8	2.91	3.53	3.85	3.69	2.54	2.54	5.13
WEK-053S	3/8		3.62	4.41	4.78	4.68	3.23	3.13	4.5	3.36
WEK-082		1/4	1.89	2.31	2.28	2.45	1.69	1.58	5.63		2.5
WEK-082S	1/4		2.55	3.12	3.46	3.34	2.23	2.23	5.25	4.5
WEK083		3/8	3.33	4.01	4.35	4.36	2.94	2.84	5.94
WEK-083S	3/8		3.76	4.56	4.88	4.78	3.29	3.19	5.31	4.44
WEK-084		1/2	5.56	6.75	7.32	7.13	4.96	4.76	6.19
WEK-084S	1/2		5.88	7.12	7.74	7.55	5.12	5.07	5.38	4.38
WEK-162		1/4	1.98	2.36	2.57	2.44	1.72	1.63	4.39		2.5
WEK-162S	1/4		2.55	3.12	3.45	3.32	2.19	2.19	3.83	5.25
WEK-163		3/8	3.19	3.88	4.25	4.11	2.78	2.71	6.88
WEK-163S	3/8		3.61	4.41	4.79	4.77	3.16	3.13	6.25	5.38
WEK-164		1/2	5.88	7.14	7.81	7.77	5.23	5.12	7.06
WEK-164S	1/2		7.1	8.5	9.22	9.01	6.21	6.02	6.31	8.31
WEK-165		5/8	8.02	9.71	10.45	10.32	7.01	6.82	7.5
WEK-165S	5/8		8.32	10.12	10.94	10.77	7.32	7.12	6.56	5.31
WEK-167S	7/8
