Home> Electric Parts> CJX9B-25S One Phase Contactor for Air Conditoner
CJX9B-25S One Phase Contactor for Air Conditoner
Detailed Product Description
1. Application: single phase air conditioner.
2. Two pole or one pole.
3. IEC60947, GB14048, TUV, and CCC
2. Two pole or one pole.
3. IEC60947, GB14048, TUV, and CCC
Made in the Largest Air Conditioner’s Contactor Manufacturer in China
• Application
CJX9B-25S Series AC contactors are generally used to control the single-phase loaded circuit systems, which are of AC 50/60Hz, rated operational voltage up to 380V and rated operational current up to 63A. They are extensively applied to control the main circuit of single-phase mechanical devices and the compressors of single-phase air conditioners.

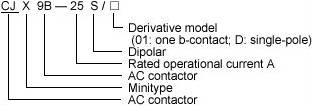

• Model Meaning
• Technical Specification
|
Type
|
CJX9B-25S
|
CJX9B-25S/01
|
CJX9B-25S/D
|
|
Rated insulation voltage Ui
|
690V
|
||
|
Rated operational voltage Ue
|
AC380V
|
||
|
Rated operational current Ie
|
25A
|
||
|
Mechanical durability
|
>1,000,000
|
||
|
Electrical durability
|
>200,000
|
||
|
Voltage tolerance of coils
|
70%~110%Us
|
||
|
Operational voltage of coils Us
|
24, 110, 220V
|
||
|
Certificate
|
IEC60947, GB14048, TUV, and CCC
|
||
|

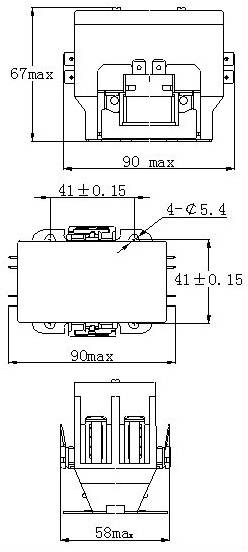

• Mounting Dimension
CJX9B-25S CJX9B-25S/01
|

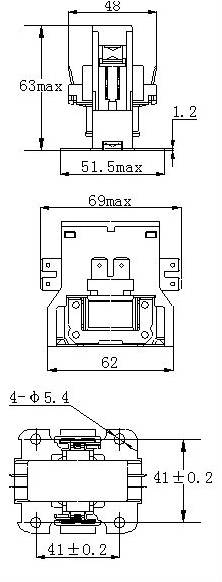

• Mounting Dimension
CJX9B-25S/D
|
• Mounting Dimension • Mounting Dimension
CJX9B-25S CJX9B-25S/01 CJX9B-25S/D
