Home> Capacitor> CBB65 Capacitor Series for Air Conditioner

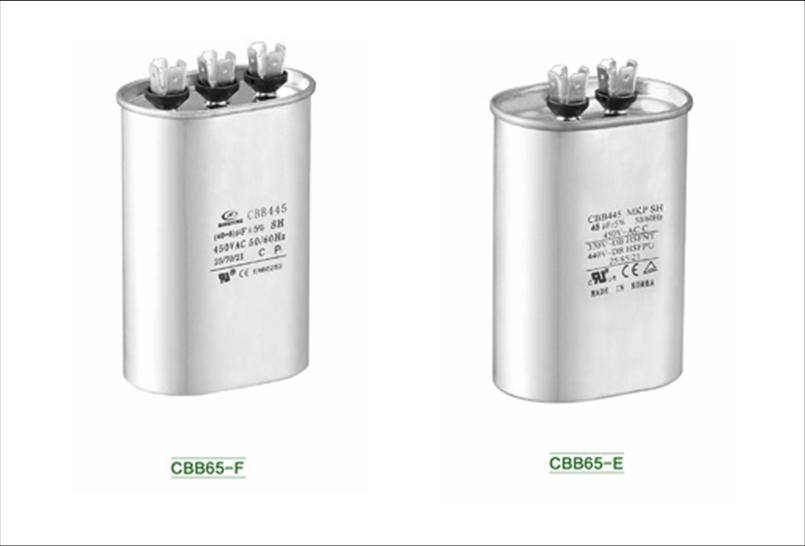

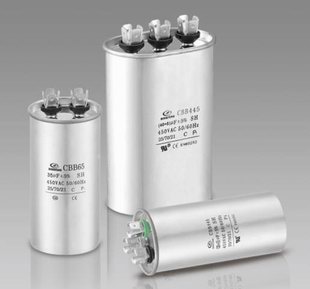

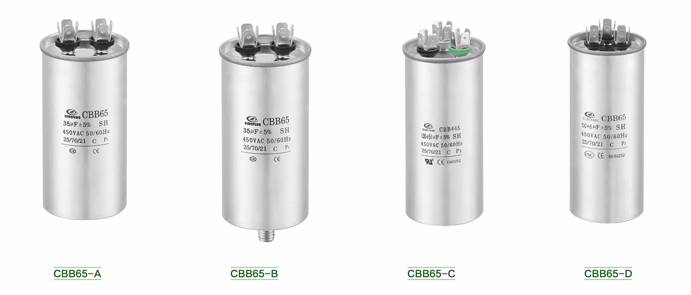

CBB65 Capacitor Series for Air Conditioner



CBB65 AC Metallized Polypropylene Capacitor
The capacitor use thickened Metallized Polypropylene film as dielectric,coiled by high speed winding machine, and encapsulated with Aluminum body,It is treated by using refined castor oil as an impregant in the high temperature and vacuum environment to make the capacitor more stable with long working life. Mean while based on the principle of safety and proof-explosion, this king of capacitors has been used the second generation mechanical explosion proof design to strengthen the reliability.

Application
This capacitor widely used for air-conditioners refrigerators generators,illuminating lamps etc.

Technical Data

Performance standard GB/T3667.1-2005/IEC60252-1:2001
Climate types 40/70/21
Capacitance tolerance ±5%
Insulation resistance ≥3000MΩ.μF
Loss Tangent  Tgδ≤0.002(50Hz-100Hz)
Endurable voltage T-T:2Un T:2S
T-C:2Un+1000V≥2000V T:10S

Dimensions(mm)

Capatitance(μF) 250V 450V
DXH(mm)
2 40×60 40×60
3
4
5
6
8
10
12 　 　
15 40×70
20 40×75
25 40×60 45×75
30 40×75 45×85
35 45×75 50×85
40 50×90/50×100
45 50×75 50×100
50 50×100
55 50×85 50×115
60 50×115
70 50×90 55×130
80 50×115 60×130
100

Dimensions(mm)



标称容量μF 电压VAC 外形尺寸Size
D W H
5 370 31 52 55
7.5 65
10
12.5 90
15 100
5 440 65
7.5 75
10
12.5 100
15
25 370 45 71 90
35 100
25 440 90
35 100
5/35 370 110
5/40
5/45 440 120
5/35 110
5/40 120
5/45
