Home> Capacitor> CBB61 Capacitor Sereis for Fan

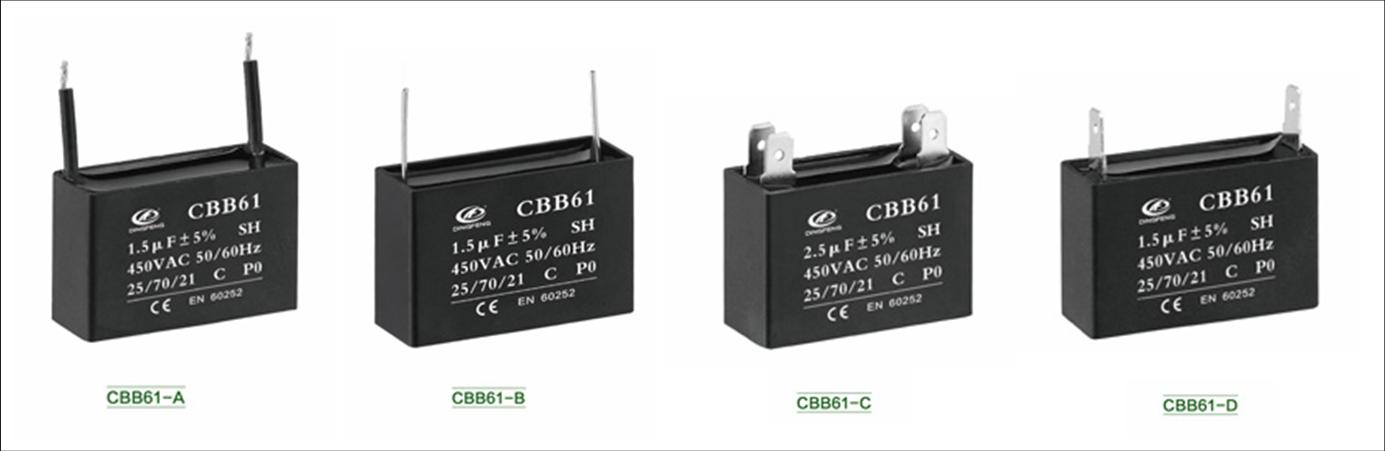

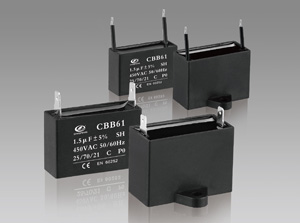

CBB61 Capacitor Sereis for Fan
| CBB61 AC Matellized Polypropylence Capacitor | ||||||
| The capacitor use polypropylence film or teticulation safety film(thickened by Zinc and Aluminum) as a delectric,encapsulated by extinguishing epoxy resin and square ABS plastic. It is small,reliable and safe,also has stable electric and long working life. |
| Techincal Features | ||||||
| Performance standard: | GB3667.1-2005/IEC60252-1:2001 | |||||
| Climate types: | 40/70/21 | |||||
| Capacitance tolerance: | ±5% | |||||
| Insulation resistance: | ≥3000MΩ.μF | |||||
| Loss tangent: | tgδ≤0.002(50HZ~100HZ) | |||||

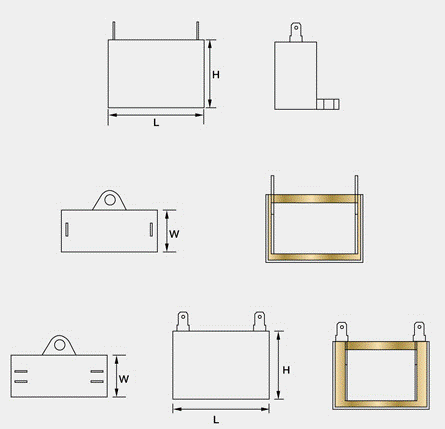

| Capacitance Voltage and Size | ||||||
| 标准容量μf | 450VAC | 250VAC | ||||
| L | W | H | L | W | H | |
| 1 | 37 | 15 | 26 | |||
| 1.2 | ||||||
| 1.5 | ||||||
| 2 | 20 | 31 | 38 | 13 | 22 | |
| 2.5 | ||||||
| 3 | 47 | 18 | 34 | |||
| 3.5 | 37 | 15 | 26 | |||
| 4 | ||||||
| 4.5 | 50 | 23 | 40 | |||
| 5 | ||||||
| 6 | 47 | 18 | 34 | |||
| 8 | 47 | 26 | 38 | |||
| 10 | 32 | 39 | ||||
| 12 | ||||||
| 15 | 36 | 47 | 39 | |||
