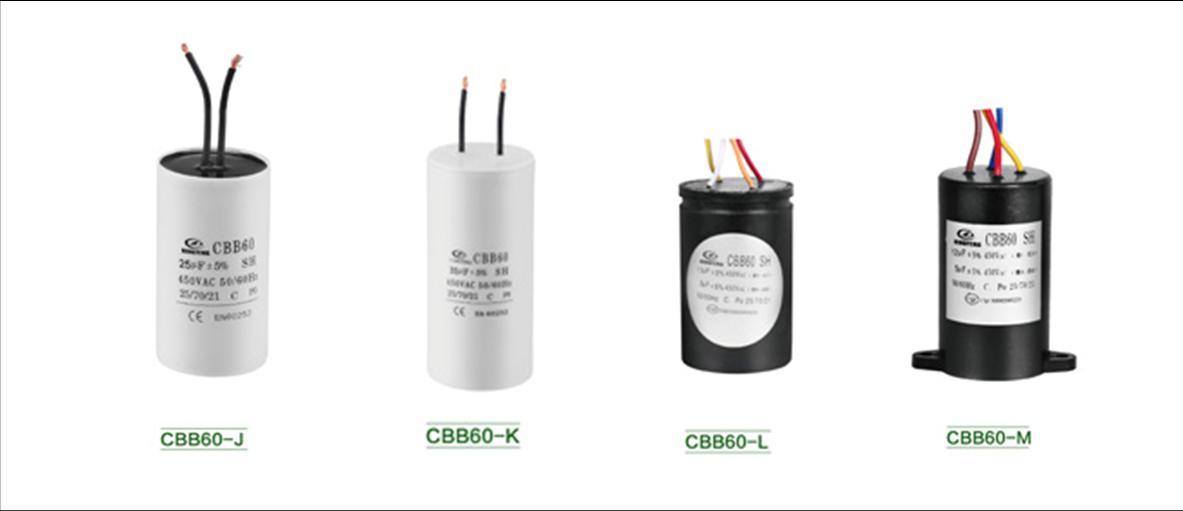

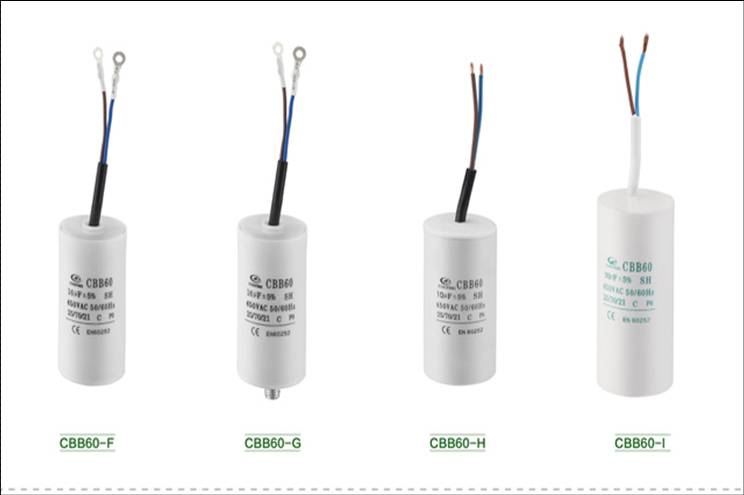

CBB60 Motor Running Capacitor Series
| CBB60 AC Metallized Polypropylene Capacitor | ||||
| The capacitors use polypropylene film or reticulation safety filn(thickend by Xinc and Aluminum) as a dielectriec , encapsulated by extinguishing epoxy resin,with cylinder shape,high reliability and good stability. | ||||
| Techincal Features | ||||
| Performance standard:GB3667.1－2005/IEC60252-1:2001 | ||||
| Climate types:40/70/21 | ||||
| Capacitance tolerance:±5% | ||||
| Insulation resistance:≥ 300M Ω.μF | ||||
| Loss tangent:tgδ≤0.002(50Hz-100Hz) |
Dimensions
| 标称容量μF | 250VAC | 450VAC | ||
| D | H | D | H | |
| 3 | 25 | 45 | 25 | 45 |
| 4 | ||||
| 5 | 26 | 60 | ||
| 6 | ||||
| 7 | 30 | |||
| 8 | ||||
| 9 | 26 | 60 | 35 | |
| 10 | ||||
| 12 | 70 | |||
| 12.5 | 35 | |||
| 14 | 40 | |||
| 15 | ||||
| 16 | ||||
| 18 | ||||
| 20 | ||||
| 25 | 70 | 42 | 80 | |
| 30 | 40 | 90 | ||
| 31.5 | 42 | 45 | 92 | |
| 35 | ||||
| 40 | ||||
| 45 | 80 | 50 | ||
| 50 | ||||
| 55 | 90 | 100 | ||
| 60 | 116 | |||
| 65 | 45 | 92 | ||
| 70 | 60 | 120 | ||
| 80 | ||||
| 90 | 50 | |||
| 100 | ||||
