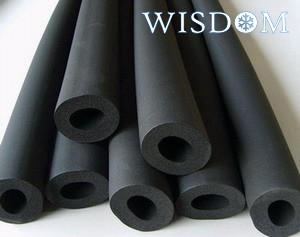

foaming tube, heat insulation tube,NBR-PVC heat insulation tube - Qingdao Wisdom International Trading Co. Ltd

Thermal conductivity coefficient is a main physical index to show the material thermal conductivity ability, it is relevant to the material component, density, molecular structure and environment humidity. So, at first, we adopt fully closed cell structure, keep the products density controlled within the best scope, reduce the water absorption rate, insure stable thermal conductivity. On the other hand, we adopt advanced production craft to set a lower thermal conductivity, the initial thermal conductivity coefficient is 0.034w(m.k) Energy saving effect will be obvious for long term operation and low maintenance.

2. High combustion-proof performance

Combustion performance is an important index to measure the security performance of the material. Our product is composed of high grade compound material mixed with plenty of combustion-proof and smoke reduction material. It will not melt when come across the fire. It has low smoke density, low toxicity and self-extinguish.

Tube Series
Nominal Insulation Size ID		Nominal 6mm wall	Nominal 9mm wall		Nominal 13mm wall	Nominal 19mm wall	Nominal 25mm wall
mm	inch	No of Pcs Per Ctn	No of Pcs Per Ctn		No of Pcs Per Ctn	No of Pcs Per Ctn	No of Pcs Per Ctn
6	1/4	280	168	180	90	50	35
10	3/8	180	120	140	80	45	32
13	1/2	160	100	120	72	42	28
16	5/8	120	90	90	56	36	25
19	3/4	100	72	80	49	30	25
22	7/8	90	65	65	45	28	21
25	1	80	49	60	42		21
28	1-1/8	70	49	50	36	25	20
32	1-1/4	60	42	45	30	25	20
35	1-3/8	60	36	42	30	20	15
38	1-1/2	55	34	36	30	20	15
42	1-5/8	50	30	30	25	16	12
48	1-7/8		28	28	25	16	12
51	2		24	24	20	15	10
54	2-1/8	30	20	2	20	15	10
57	2-1/4		20	20		15	10
60	2-3/8		20	20	20	15	9
67	2-5/8		18	18	15	15	8
73	2-7/8		18	18	13	10	8
76	3		18	18	12	9	8
80	3-1/8				12	8	8
85	3-3/8				12	8	8
90	3-1/2		15	18	10	8	8
Standard Carton Size: 1.83m length - 1.88 x 0.38 x 0.33m (74in x 15in x 13in) 300 boxes/40HQ 2.00m length - 2.05 x 0.38 x 0.33m (81in x 15in x 13in) 270 boxes/40HQ 1.80m length - 1.835 x 0.36 x 0.305m (73in x 14.6in x 12.3in) 330 boxes/40HQ
